🛠️ How to Maintain a Submersible Motor/Pump Impeller (Detailed Guide)

A submersible pump depends heavily on the impeller for water movement. When the impeller is worn, dirty, or loose, the pump will lose pressure, vibrate, or fail completely. Regular maintenance helps the pump last longer and prevents overheating.

✅ 1. Safety First

Before any work:

• Disconnect power from the control panel completely.
• Lift the pump out of the borehole or tank.
• Allow the pump to cool down (if recently running).
• Work on a clean flat surface.

---

✅ 2. Remove the Pump Casing

Steps:

1. Unscrew the top discharge head.
2. Remove the bolts around the casing.

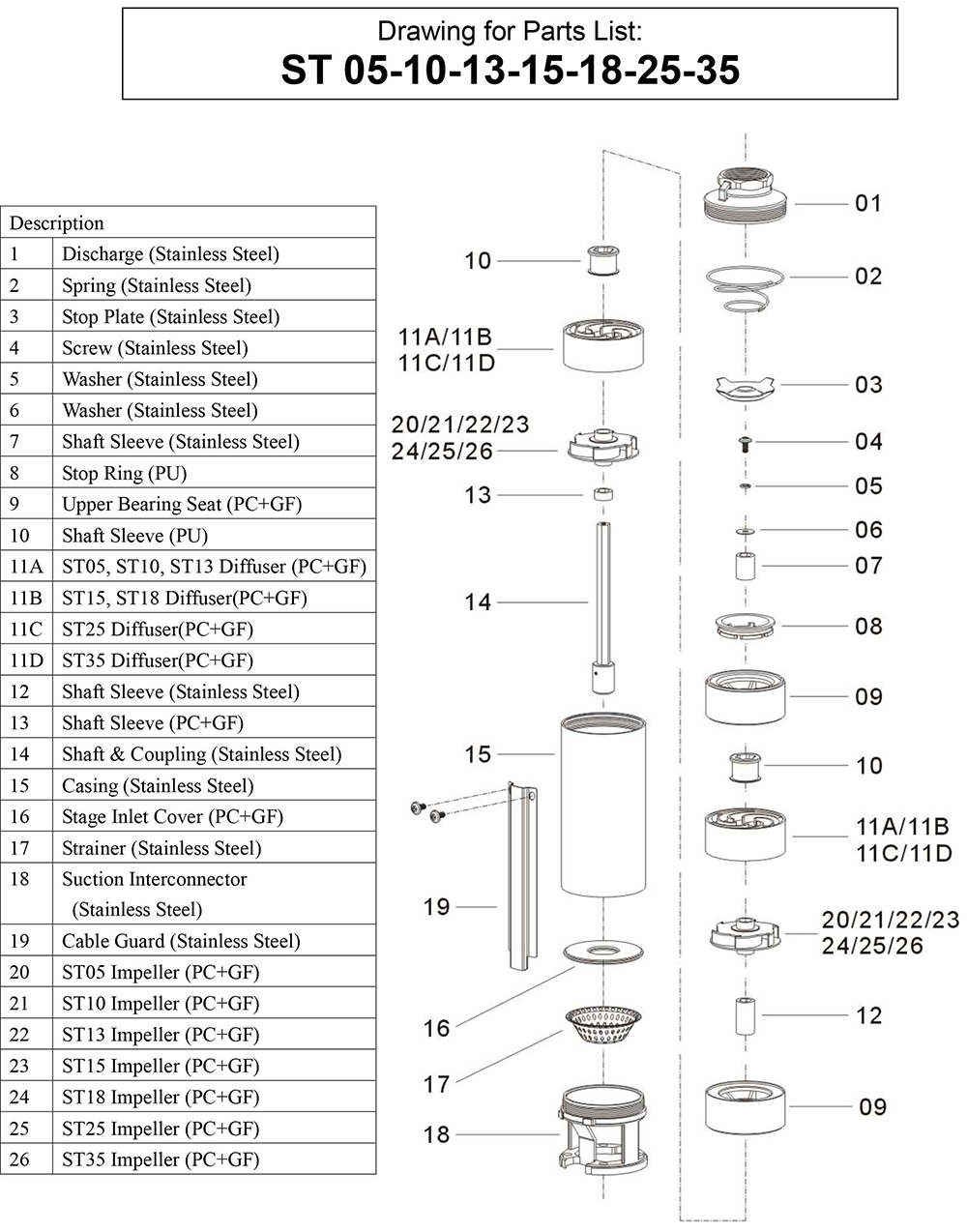

3. Slide the casing off carefully to expose the impeller stack (multi-stage) or single impeller depending on pump type.

---

✅ 3. Inspect the Impeller

You’re checking for:

A. Dirt/Mud/Sand Buildup

• Sand often sits between the impeller vanes and can cause drag.

B. Wear on Vanes

• Worn vanes reduce pressure.
• Sharp edges mean good condition; rounded/bent edges mean worn.

C. Shaft Play

• Hold the impeller and shake; excessive sideways movement = worn bushings/bearings.

D. Broken or Cracked Blades

• Even small cracks create vibration and noise.

---

✅ 4. Clean the Impeller Thoroughly

Use:

• Clean water
• Soft brush
• Mild detergent (optional)

Procedure:

1. Scrub mud, algae, stones, rust, and debris.
2. Remove sand trapped under/around impeller vanes.
3. Rinse thoroughly and dry.
4. Check that impeller rotates freely on the shaft.

Do NOT use: acid, sharp objects, or high-impact tools.

---

✅ 5. Check and Maintain Key Components

A. Wear Ring / Casing Ring

• This ring controls clearance between impeller and casing.
• If clearance becomes too big, pump loses pressure.
• Replace if worn.

B. Shaft Sleeve

• Inspect for grooves caused by sand.
• Replace if badly scratched.

C. Bearings & Bushings

• Rotate by hand.
• If it grinds, shakes, or feels stiff: replace.

D. Key & Keyway

• Ensure the impeller is tight on the shaft.
• A loose key causes vibration and low pressure.

---

✅ 6. Reassemble the Impeller System

Steps:

1. Reinstall impeller(s) in correct order.
2. Tighten lock nuts or shaft nuts securely.
3. Align impeller stack properly (for multi-stage pumps).
4. Replace the casing and tighten bolts evenly.
5. Ensure shaft rotates freely by hand after assembly.

---

✅ 7. Test Before Lowering Pump Back

1. Test the pump in a surface water tank or drum.
2. Check:
   • Smooth running (no vibration)
   • Good pressure
   • No unusual noise
3. Inspect for leaks.

If all is good, reinstall in borehole or tank.

---

🧰 Maintenance Frequency

Environment	Maintenance Interval
Clean borehole	Every 6–12 months
Sandy or muddy borehole	Every 3–6 months
Industrial/wastewater	Monthly inspection

---

🚨 Signs Your Impeller Needs Maintenance

• Pump running but low pressure
• Pump overheating
• Excess vibration
• High amp draw
• Water output fluctuates
• Pump trips off after few minutes

---
